LUXEON 5050 9600LM Solar Powered Street Lights High Efficiency
High Efficiency 3 Year Warranty 163lm/W Seperate Solar Street Light
1. The lamp adopts integrated structure design, with better heat dissipation design and longer life;
2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to 160lm/W;
3. The solar panel is made of monocrystalline silicon, with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;
4. Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs;
5. It has functions of light control, time control, dimming, intelligent power saving + morning light;
6. Solar controller built-in lightning protection module;
7. Using ternary lithium battery technology, the battery capacity is high;
8.365 days uninterrupted power.
| Par NO | LY-ST70060PW | LY-ST70060PW | LY-ST70060PW |
| Battery | 18650 lithium battery 12V 80 Ah |
| Beam angle | 150x70° |
| System consumption(W) | 60W | 60W | 60W |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| Luminous flux(lm) | 9600 | 9600 | 9600 |
| Solar panel | 100W /18V monocrystalline silicon |
| Lifespan(hrs) | ＞50000 | |
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days |
| Control Mode | Light Control +Time Control |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K |
| Material | Die-casting Aluminum |
| Installation height6 | ~8M |
| Light Size(mm) | 252x220x128 | 252x220x128 | 252x220x128 |
| Solar panel Size (mm) | 1008x270x750.5 | 1008x270x750.5 | 1008x270x750.5 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Sample Time | Immediately |

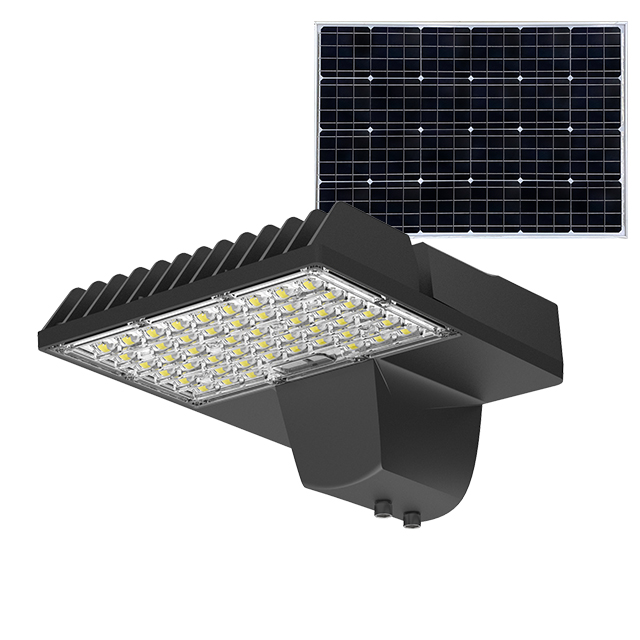

Product Images

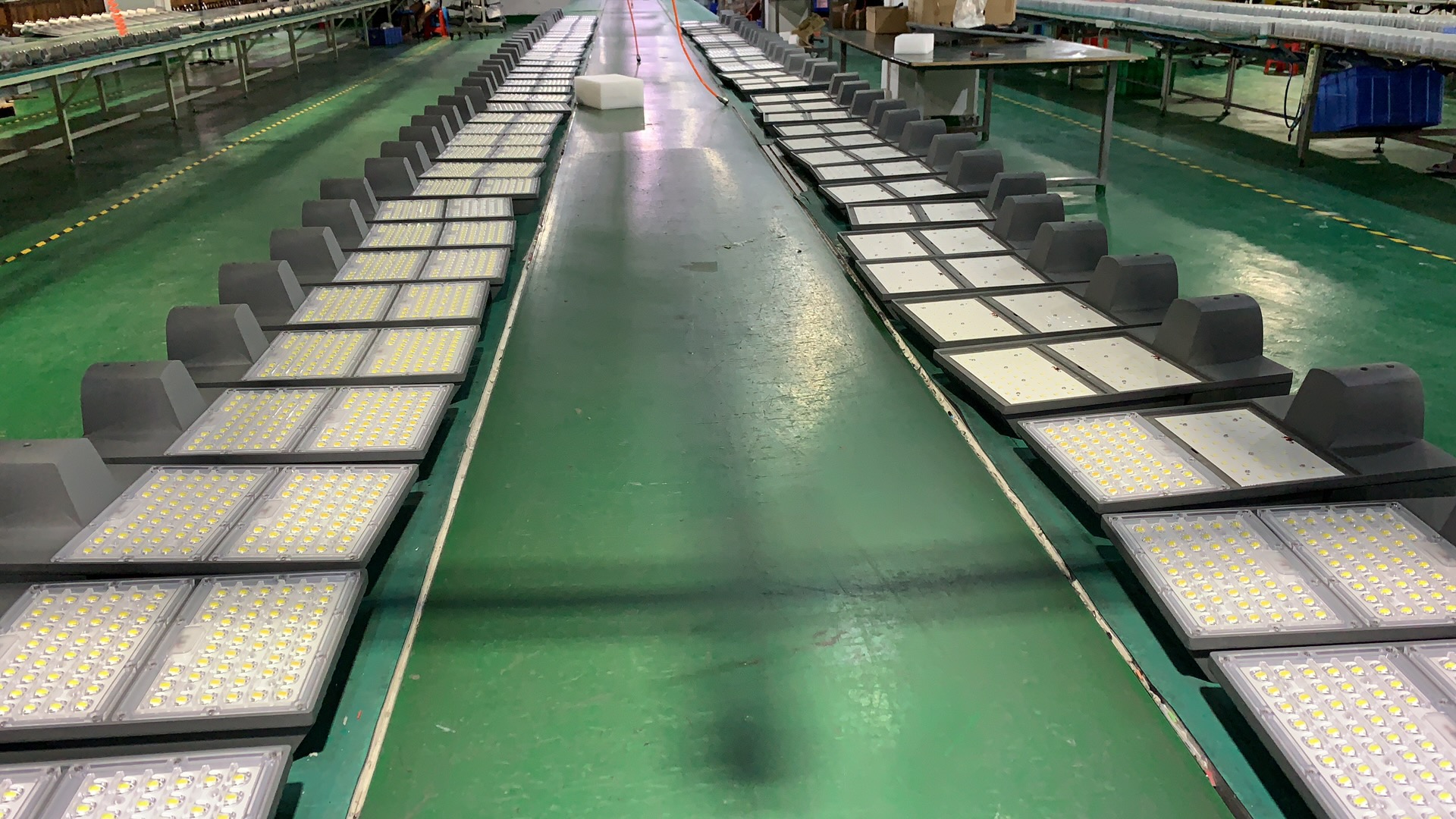

Project Cast Images
Packing Details
Inner box Size: L310*W270*H200mm
Outer box Size: L328*W285*H425mm (2 PCS LED Street Light)
Inner box Size: L1055*W180*H725mm
Outer box Size: L1070*W375*H740mm (2 PCS Solar Panel)
FAQ
Q1. What is your MOQ?
MOQ: 1 Pcs. Which is No MOQ.
Q2. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.
Q3. What is the payment terms of your formal order?
We accept payment via TT, Paypal, Western Union, and we offer EXW terms.
Q4.Can you guarantee the product quality?
We offer 3-10 years warranty to our products. We ensure and guarantee the production quality of all products, either sample order or formal order, with LEYOND's quality control process, we achieved less than 0.2% general failure rate, this was based on our sales records in the past 10 years.
Q5. Can you provide OEM and ODM service?
Yes, we can provide OEM and ODM product, with customized label design on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.
Q6. Can you provide the certificate and test reports?
Yes, please contact our sales staff, we can provide all the certificates, test reports, photometric reports and IES files of each of our luminaire.
Q7.How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q8.What is the lead time of your product? Our standard lead time for sample is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time, please also check with our sales team.
