Aluminum alloy lamp body High Brightness Football Ground 200w Led Outdoor Flood Light Ip65 6500k
Electrical Specifications
Model | modules number | Power | Input Voltage | Input Current | Power factor | Power efficiency |
LY-ST23200PW | 4 | 200W | AC90~305V
50/60Hz | 0.93A/220VAC | >0.99/115VAC
>0.98/230VAC | >90% |
Photometric Specifications |
Model | modules number | Power | Luminous flux | Luminous efficiency | CRI | CCT | BeamAngle |
LY-ST23200PW | 4 | 200W | >24000lm | 120lm/W | >50 | 3000-3500K
4000-4500K
5000-5500K 6000-6500K | 24°
36°
60° 90° |
Mechanical Specifications |
Model | modules number | Power | Carton Size | gross weight | Net Weight | IP Rating | Meterial |
LY-ST23200PW | 4 | 200W | 385X470X155MM | 10.3kg | 9.2kg | IP66 | Aluminum +PC |
Outlook:

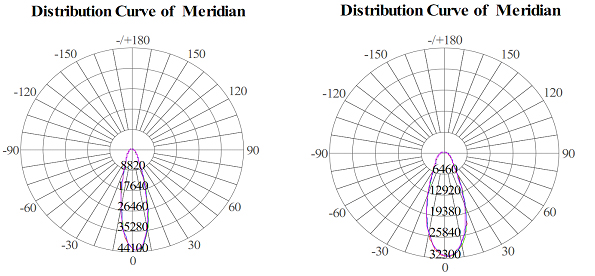

Distribution Curve:

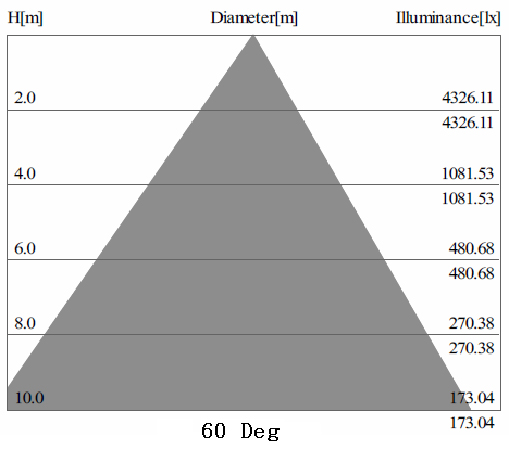

Photometry (AAI Figure)
Pictures:
Application:
It can be used for Outdoor lighting.Football ground lighting , Tennis playground lighting and Warehouse lighting , plaza lighting , tunnel lighting and so on.
New Installation or Replace the traditional High Pressure Sodium Lamp , High Pressure Mercury Lamp , and Metal Halide Street Lamps. Etc.

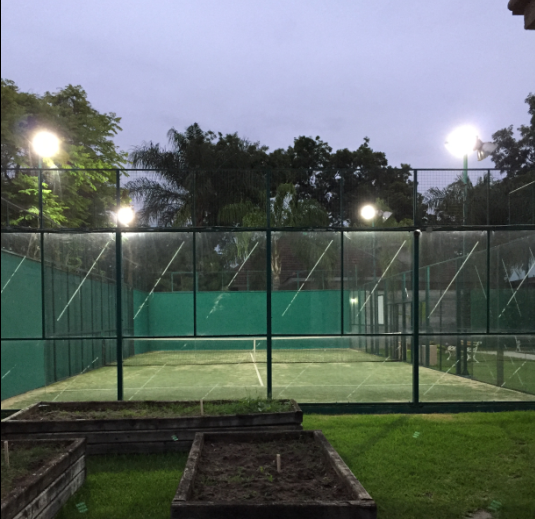

Our Projrct:
Feature:
1. Adoption LEYOND exclusive Lens with light transmittance up to 98%
2. Perfect Light Distribution Solution , Adoption of integrated shell optic lens , enhance the brightness and illumination uniformity
3. There are 24° , 36° ,60° , 90° beam angle options for the Lens
4. Scientifically-designed heat dissipater with much better cooling effect
5. High luminous efficiency , Whole lamp output light effiency >130LM/W
6. High quality power supply, input voltage 100-240V . The power efficiency is more than 90% , power factor greater than 0.98 , UL compulsory certification .
7. For the traditional light source such as the High Pressure Sodium , if the voltage fluctuation ±7% , the brightness and lifetime will be reduced very fast , but for LEYOND LED , even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all ; Over Current , Over Voltage , Over Heat , Thunder Protection
8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body
9. The CCT of Warm white , Neutral white , Pure white to meet the needs of different occasions , eliminated the low color temperature of the sodium lamp which cause the depressed mood , observers will feel more comfortable.
Operation and Storage Condition
• Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 5~12m height
Trade terms
Payment : T / T , western Union or Paypal
Shipping : By Express ( EMS , DHL , UPS etc ) , By Air or By Sea
Delivery time : 7 - 15 working days for normal orders
Port : Shenzhen , China
Our service
1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM and ODM are welcomed
4. Make the products as your requirement.
5. Protection of your sales area , ideas of design and all your private information
Product Tags:
|
|
Aluminum alloy lamp body High Brightness 160lm/w Football Ground 200w Led Outdoor Flood Light Ip65 Images
|
